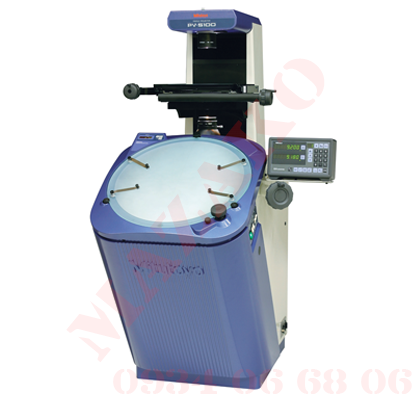

Máy chiếu biên dạng, PV-5110, Series 304

Model máy		PV-5110
Mã đặt hàng		304-919
Projected image		Inverted-reversed
Resolution for X/Y counter		—
Measuring range (XxY)		200x100mm (164x68mm)
Protractor screen	Effective diameter	Ø508mm (20'')
	Screen material	Fine-ground glass
	Screen rotation	±360° (±370° for display)
	Angle display	Digital counter (LED) (ABS/INC mode switching, Zero Set)
	Resolution	1' or 0.01° (switchable)
	Mechanism	Fine feed and clamp
	Cross-hairs	90° (solid lines)
	Zero-base index	(Equipped with the built-in backlight)
Projection lens	Magnification	5X, 10X (standard accessory), 20X, 50X, 100X
Projection lens	Lens mount	Quick insertion type
Magnification accuracy	Transmitted illumination	Less than ±0.1% of nominal magnification
Magnification accuracy	Surface illumination	Less than ±0.15% of nominal magnification
Illumination	Transmitted illumination	Halogen bulb (24V, 150W, 500hours) (No.512305)
		Telecentric system, Heat-absorbing filter, Built-in cooling fan
		2-step (High/Low) brightness switch, Combination use with a color filter available
	Surface illumination	Halogen bulb (24V, 150W, 500hours) (No.512305)
	Surface illumination	Heat-absorbing filter, Beam concentration and adjustment available, Double-lighting oblique surface illumination unit (5X, 10X, 20X), Built-in cooling fan, 2-step (High/Low) brightness switch
